rf power resistor
Resistente de RF Resistente de carga fictícia com -55°C~ +125°C Temperatura de operação 1,2~1.3 Relação de onda estável e montagem de flange coberta de cobre níquel
RIG RF resistor flange mount 100 ohms 50ohms dummy load resistorCustom designs available RF Attenuators and RF Resistors and RF Terminations. Product Description The following are the commonly used sizes, we can also customize the size according to your requirements Electrical Characteristics:Range of nominal resistance1 ~500ΩResistance tolerance±5%Frequency range0~2GHzStanding wave ratio1.2~1.3Insulation resistance≥ 1GΩWithstand voltage500V/1 mm (Substrate thickness
High Power Ceramic RF Resistor 100W 50 Ohms with Wide Operating Temperature -55°C to +165°C and 0~2GHz Frequency Range
High Power Ceramic Resistor RFR 100W 50 Ohms 100 Ohm RF Resistor Available in power ratings from 50W to 1000W with resistance options from 10Ω to 500Ω. Product Images Available Configurations All RF flange resistors can be manufactured with either one terminal or two terminals: Technical Specifications Electrical Characteristics Range of nominal resistance 1-500Ω Tolerance ±5% Frequency range 0-2GHz Standing wave ratio 1.2-1.3 Insulation resistance ≥1GΩ Withstand voltage 500V
500W 50 Ohm Flange Mount RF Resistor com terminação de alta potência
Resistor RF de montagem em flange de 500 W com faixa de 10-500Ω, tolerância de ± 5% e excelente desempenho de frequência de 0-2 GHz. Possui certificações RoHS, TUV, ISO9001, design compacto e operação estável de -55°C a +165°C para uso confiável em sistemas de comunicação.
RIG42 800W 50Ω Resistor RF cerâmico de alta potência com montagem de flange para desempenho estável
Os resistores RF de alta potência RIG42 (800W-1500W) oferecem faixa de 1-500Ω com tolerância de ±5%. A construção BeO/Cu garante estabilidade de -55°C a +125°C. Fabricante OEM com opções personalizadas, suporte a folhas de dados e certificações globais.

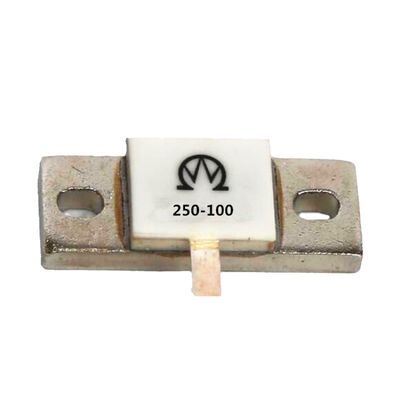

Resistente de alta potência RF Resistente de flange com 0 ~ 1.5GHz Frequência -55 ~ + 125 °C Faixa de temperatura e sumidouro de calor revestido de cobre níquel
Product Description 100 ohms 50 Ohms 250 Watt High Power RF Resistor 50 Ohms 250 Watt with two terminals 100 Ohms 250 Watt with one terminal Other commonly used ratings powerFor enquiries, please specify : 1.power and resistance 2. need single lead or double leads Specification ElectricalCharacteristicsRange of nominal resistance10Ω~500ΩResistance tolerance±2%, ±5%Frequency0 ~2GHZWistand Voltage500V/1mmInsulation resistance≥ 1GΩStanding wave rate1.2-1.3EnvironmentCharacterist
200Ohm Flange Mount Wirewound Resistor with Copper Nickel Plated Aluminum Housed for RF Applications
Factory Direct Supply 1000W 200Ohm Aluminum Housed Resistor Flange Mount RIG RIG RF Resistor Flange Mount - 100Ω/50Ω Dummy Load Resistor Custom designs available for RF Attenuators, RF Resistors, and RF Terminations. The following are commonly used sizes, with custom sizing available upon request. Technical Specifications Electrical Characteristics Range of nominal resistance 1~500Ω Resistance tolerance ±5% Frequency range 0~2GHz Standing wave ratio 1.2~1.3 Insulation
High-power Ceramic RF Resistor with 5% Tolerance 800W 50ohm for 3G and 0-2GHz Applications
RIG 5% 800W 50ohm High-power Ceramic Resistors RF Resistor 800W Product Features and Applications Compact size with large power capacity Excellent high frequency characteristics and stable performance Easy installation and reliable operation Ideal for power dividers, isolation resistance, and terminal load resistance in high-frequency circuits Widely used in cavity couplers, combiners, duplexers, TV/FM transmitters, base station antennas, and smart antenna systems Essential
Aluminum Housing Brake Resistor with Flange Mount 100W-3000W Power Range 1Ω-500Ω Resistance ±5% Tolerance
Aluminum Housing Brake Resistor Flange Mount RIG 100W-3000W High-performance aluminum housing brake resistors with flange mount design, available in power ratings from 100W to 3000W. Product Images Technical Specifications Electrical Characteristics Range of nominal resistance 1~500Ω Resistance tolerance ±5% Frequency range 0~2GHz Standing wave ratio 1.2~1.3 Insulation resistance ≥ 1GΩ Withstand voltage 500V/1 mm (Substrate thickness) Environment Characteristics Rated power 1
High Power 1000W Flange Resistor with ±300*10-6/℃ Temperature Coefficient and -55°C~+125°C Operating Temperature
High Power 1000W Flange Resistor 100 Ohm High Intensity Ceramic Resistor Product Features Small size with high power capacity Stable and reliable performance Easy installation process High intensity ceramic construction Electrical Characteristics Range of nominal resistance: 1Ω-500Ω Resistance tolerance: ±5% Frequency range: 0~2GHz Standing wave ratio: 1.2~1.3 Insulation resistance: ≥ 1GΩ Withstand voltage: 500V/1 mm (Substrate thickness) Physical Characteristics Terminal
