variable resistor
Resistor Fixo Bobinado de 100W com Tolerância de ±5% e Resistor Variável de Tamanho Personalizável
Product Description 100W variable resistor type+100 watt wirewound fixed resistor Namebraking resistorModelRXG20Performanceadjustable type & fixed typeShapeCylindrical ceramic tubeMaterialWirewoundRated power100 WResistance1ohms~5kResistance tolerance±5%DiameterD=28mmLengthL1=170mmMounting bracketsIncludingNon-standard sizeCan be customized Company Profile Sichuan Qixing Electronics CO.,LTD specialize in potentiometers, resistors and EMI filters for 13 years. Our products
BONENS RX20-50W-12R 50W 12 Ohm tubo cerâmico Wirewound resistor ajustável variável com 5% tolerância
Product Description 50W Ceramic Tube Wirewound Variable Resistor 12 ohm Specification Namebraking resistorModelRXG20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power50WResistance12 ohmsResistance tolerance±5%DiameterD=28mmLengthL1=90mmMounting bracketsIncludingNon-standard sizeCan be customizedAdjustable typeCan be offered You may also like Company Profile
BONENS 2000 Watt Tubo Cerâmico Wirewound Resistor Ajustável com 1 ohm ~ 10k ohms Intervalo e ± 5% Tolerância
Product Description 1R 5R 8R 10R 50R 70R 100R Ceramic Tube wirewound Variable Resistor 2000 watt Specification NameAdjustable Wirewound ResistorsModelRX20TColorgreenAccessories : thickened Stainless bracket and GasketPower2000 WattResistance1 ohm ~10k ohmsResistance tolerance+/-5%Length430mmDiameter70mmServiceCan be customized according to customer's sizeMaterialEco-friendly paint ceramic tube Packing & Delivery You may interesting Company Profile Factroy Informations:Sichuan
Resistor de Filme Metálico 1/4W com Tolerância de 1% e Montagem em Superfície para Aplicações de Precisão
1% color ring resistance 1/6W 1/4W 1/2W 1W 2W 3W 5W Metal film resistor Product Description PICTURES : DIMENSIONS: Model NumberCarbon Film Resistance 1/4w 1w 2w 5wTypeCarbon Film ResistenceBrand NameTaihuaResistance0-22MSupplier TypeOriginal manufacturer, ODM, Agency, Retailer, OtherMedia Availabledatasheet, Photo, EDA/CAD Models, OtherTechnologyMetal FilmPackage TypeSurface MountResistance Tolerance+-1%Temperature Coefficient-55℃ to +155℃Operating Temperature±5PPM/°C ~

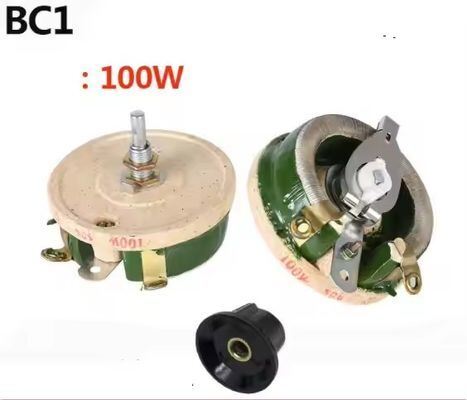

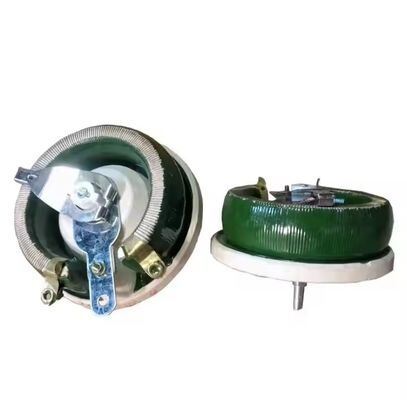

Resistência variável de disco BC1 para gerador de corrente de máquina de soldadura elétrica 100W
BC1 disc adjustable resistance electric welding machine generator current adjustable resistance 100W product name: BC1 -type rotor -type variable resistor/BC1 disc adjustable resistor/BC1 disk variable resistor/BC1 variable resistor/BC1 porcelain disk resistor/BC1 porcelain disk resistor Circular disk resistor BC1 25W 50W 100W 200W 300W 1K adjustable potentiometer wire wound ceramic disk resistor product description: 1. TheBC1 series adjustable resistance is usually called a

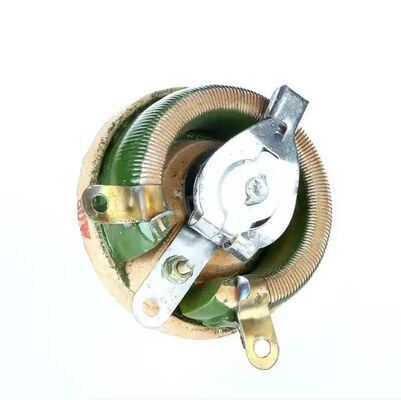

BC1 Resistência variável de disco de porcelana com materiais cerâmicos personalizáveis 25W 50W 100W
product name: BC1 Porcelain Disk Variable Resistor with Customizable Ceramic Materials 25W 50W 100W product description: 1. TheBC1 series adjustable resistance is usually called a resistor or potentiometer, which can be used as two connections of the resistor, or as a potentiometer with three connection terminals. 2. On one resistance, you can use different resistance winding wires to make multiple resistance values. 3. It has characteristics such as large power, humidity
RV24YN20S resistor rotativo variável de filmes de carbono ajustável, de potência única
RV24YN20S carbon film adjustable single-turn potentiometer rotary variable resistor 1K 2K 5K 10K 20K adjustable potentiometer Product Description Specification Electrical characteristic: Total resistance range B50Ω~B2MΩ A,C:1KΩ~2MΩ Resistance tolerance ±10% End resistance ≤3Ω Resistance taper B(Linear) A(Logarithm) C(Reverse log) Contact resistance variation 3% or 3Ω,whichever is greater Power rating B:0.25W/40℃,0W/85℃ AC:0.125W/40℃,0W/85℃ Max.input voltage B:DC315V or power

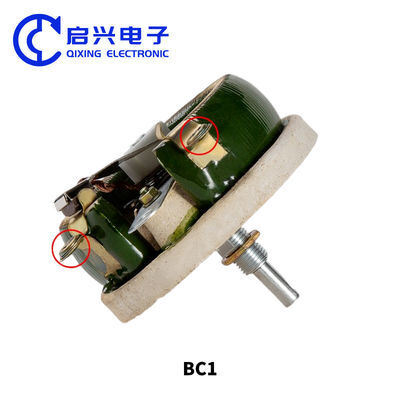

Reostato de disco cerâmico BC1 100W Resistor ajustável 1Ω-10KΩ
BC1 Ceramic Disc Adjustable Resistance 100W Rheostat The BC-1 wire wound resistor features high resolution capability with a wide resistance range. Designed for durability, it offers excellent heat resistance, humidity resistance, and wear resistance characteristics. Suitable for voltage and current adjustment in power equipment and circuits not exceeding 380V AC or 220V DC. Technical Specifications Maximum working voltage: 1000V with 2500V insulation voltage Temperature rise
Potenciômetro multi-torno de 3296W com um botão de 8 mm para resistor ajustável de 1k-50k
Product Description 3296 multi-coil glass glaze adjustable potentiometer3296 multi-coil glass glaze adjustable potentiometer, 3296 has 6 models, 3296W,3296Y,3296X,3296Z,3296P,3296X-A,3296W-B stance value is 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 250K 500K 1M 2M 3M 4M 5M. Specification Electrical CharacteristicsRange of nominal resistance10Ω~5MΩResistance tolerance±10%Terminal resistance≤±1%R or 2ΩContact resistance variation (CRV)≤±1%R or 3ΩInsulation resistance≥ 1GΩ
