multi turn potentiometer
46MM B2 de precisão de potenciômetro de promoção botão de discagem botão de resistência ajustável botão de várias voltas 3590S
Overview product name B2 precision dial knob 3590S/534 potentiometer cap with lock 4mm 6mm product description Title: B2 precision scale disc knob Full linear digital knob (dial) B2 Specifications: shaft hole 4mm/6mm/6.35mm Chassis diameter: 46mm Height: 26mm Positioning distance between the center: 16mm Transcription numbers: 0-14 Fixing type: screw fastening Product Features 1. No rebound, with locking function. 2. The structure is sturdy and reliable, designed specifically

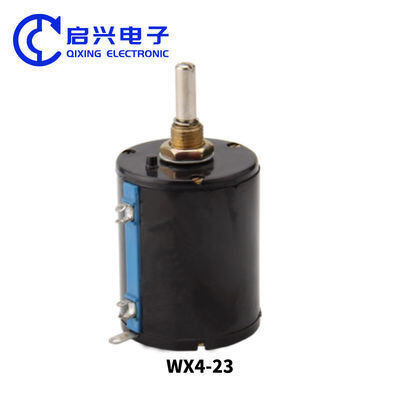

WXD4-23 Potenciômetro Wirewound de 3W de múltiplas voltas de 100 ohms com alta tensão de trabalho de 200 V
WXD4-23 100ohm Multi-turns 3W Wirewound Potentiometer with 200V High Working Voltage product name: WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer b100k 3W 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K product description: Model: wxd4-23-3w Attribute: Multi turn precision potentiometer Packaging: 1 box/5 pieces 1, Environmental conditions for use: Environmental temperature: -50~+100 ℃; Relative temperature: 98% at a temperature of+40 ℃; Atmospheric pressure: 107~47kPa;
BONENS IP67 Impermeável 10 Viração Precision Multi-Viração Potenciômetro Wirewound rotativo com botão
3590 precision multi turn wire wound potentiometer 10K ohm PRODUCT PACKAGING 25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box PRODUCT DESCRIPTION Potentiometer type:Multi turn potentiometer Potentiometer material:wire wound model:3590S-2-103L Resistance: 10K Ω Permissible resistance range: ± 5% Electrical rotation angle: 3600 ° ± 10 °(10 turn) Rated power: 2W (70 ℃) Temperature range: -55 ℃~+125 ℃ 3590S wirewound potentiometer Total mechanical stroke: 3600 ° ± 10 °
BONENS IP67 Potenciômetro à prova d'água 3590S-2-103L 10k Ohm Precision Multi-turn Wirewound Potentiômetro 2w 10 Turn
3590 precision multi turn wire wound potentiometer 10K ohm PRODUCT PACKAGING 25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box PRODUCT DESCRIPTION Potentiometer type:Multi turn potentiometer Potentiometer material:wire wound model:3590S-2-103L Resistance: 10K Ω Permissible resistance range: ± 5% Electrical rotation angle: 3600 ° ± 10 °(10 turn) Rated power: 2W (70 ℃) Temperature range: -55 ℃~+125 ℃ 3590S wirewound potentiometer Total mechanical stroke: 3600 ° ± 10 °
Diâmetro digital H-23-6A botão de metal para 3590S potenciômetro botão de volume de alumínio d eixo 6mm 15 TURN com diâmetro de contagem
Overview product name: H-22-6A Digital knob multi-ring potentiometer knob 6.4mm metal knob can be equipped 3590S 534 product description: Outer diameter: 22MM Height: 24MM Shaft hole diameter: 6.4MM Center to center distance of positioning: 9 Dial scale: 0-90; Number of small window turns: 0-14 Fixed form: fixed with small screws on the side Equipped with a switch locking device, the surface of the outer cover is electroplated, providing a decorative aesthetic. Beautiful and
Bonens 3540S-1-502L Potenciômetro Wirewound 5 KOhms 10 Turns Pwr 2W Série 3540 Bom preço
10K ohms Multi-turn potentiometer wirewound potentiometer 3540 Product Description Specification Electrical Characteristics Range of nominal resistance 100~100K Resistance tolerance ±5% Terminal resistance ≤2%R or 5 Peak noise ≤100 Linear accuracy ±0.25% Electrical angle 3600°±5° Insulation resistance ≥ 200M Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range 55°C~ 125°C TCR ±100x10-6/°C Temperature shock R≤±3%R
534 10k 100K ohm potenciômetro de precisão de múltiplos giros rotativo de múltiplos giros
Black color 534 2W 1k 10k 100k 10 turns precision wirewound potentiometer 534-1-1K Potentiometer 534 Multiturn Potentiometer Wirewound Potentiometer 10-Turn Potentiometer 2W Potentiometer Product Introduction: 534-1-1K 534-1-2K 534-1-5K 534-1-10K 534-1-1K 534 Precision multi-turn wire wound potentiometer, 10-turn variable frequency speed control potentiometer, 2W 1K 2K, 5K 10K, 20K 50K 100k product description: Wire around multiple circle precision potentiometers; electrical
WXD3 13 2W 10 volta potencialómetro de enrolamento de fio 4K7 10k
product name: WXD3 WXD3-13 2W Multi-Turn Wirewound Potentiometer Rotary Switch 10 turns 5k 10k 100k product description: Precision multi-line wire winding power WXD3-13-2W, 20 boxes of sliding barrier, a shaft diameter 4mm axis 20mm outer diameter 20mm, 2W, 10 laps, resistance value of 100 ohm, 220 ohm, 330 Euros. 470 ohm, 1K, 2K, 2.3K, 3.4K, 7.5K, 10K, 22K, 33K, 47K Product Features: High structure structure Excellent craftsmanship, smooth movement, reliable and stable
BONENS WXD4-23 3W Multi Turn Wirewound Potentiometer 1K 1K5 2K2 3K3 4K7 5K6 6K8 10K 22K Ohm
product name WXD4-23 Precision Potentiometer Power: 3W Type: Multi-turn Wirewound Potentiometer Number of Turns: 10 Turns Shaft Diameter: 6mm Shaft Length: 25mm Outer Diameter: 40mm Rotation Angle: 3600° (Note: Typically means 360°, possibly a redundancy in statement but kept for accuracy) Packaging: 5 pcs/box Resistance Tolerance: ±2%~±5% Product size Specification parameters: Place of Origin China China sichuan Model Number WXD4-23 Type Rotary Potentiometer D/C brand-new
